Your Hangar Wasn't Built for These Jets: How Private Aircraft Grew 50% Since 2000

Your hangar door is 100 feet wide. The Gulfstream G700 has a 103-foot wingspan. We're gonna need a bigger boat.

That G700 calling ahead for Thursday afternoon isn't a theoretical problem. That's you doing wingspan math while trying to figure out if you can even accommodate it.

Between 2000 and 2025, private jets didn't just get better—they got significantly larger. Wingspans grew by approximately 10 feet. Cabin volumes increased by 30-60%. And maximum takeoff weights jumped from 90,000 lbs to 115,000 lbs.

If your facility was designed around early 2000s aircraft, you've got a problem. What changed—and why it matters for your operations. Understanding aviation industry trends and 3D aircraft stacking optimization helps accommodate modern jets. Calculate your ROI on infrastructure upgrades.

The Flagship Problem: They're Huge Now

In 2000, the top-tier business jets were the Gulfstream V and Bombardier Global Express. These were already large aircraft:

• Range: ~6,200-6,675 nm (New York to London, barely)
• Wingspan: 93-94 feet
• Cabin volume: 1,595-2,140 cubic feet
• Max weight: 90,500-98,000 lbs
• Price: $40-45 million

Fast forward to 2025, and the new flagships—Gulfstream G700, Global 7500, Falcon 10X—are in a different category entirely:

• Range: 7,500-7,750 nm (Singapore to San Francisco, nonstop)
• Wingspan: 103-110 feet
• Cabin volume: 2,603-2,786 cubic feet
• Max weight: 107,600-115,000 lbs
• Price: $75 million

Modern flagship jets dwarf their 2000-era predecessors in wingspan, cabin volume, and weight

What This Means for Your Ramp

Wingspan creep is real. The Gulfstream GV's 93.5-foot wingspan fit comfortably in most large hangars with room to spare. The G700's 103-foot span? You're measuring door clearances and rethinking your layout.

Weight matters for ramp design. Pavement rated for 90,000-lb aircraft may need reinforcement for the 107,600-lb G700 or 114,250-lb Global 7500. Most modern ramps handle this fine, but older infrastructure built in the 1990s-2000s might be pushing limits.

Turning radius changed. A longer fuselage (96 ft → 110 ft) and wider wingspan means these aircraft need more room to maneuver. Taxiway clearances that worked fine for a 2005 Global Express are tight for a 2025 Global 7500.

*Expected entry to service (originally scheduled for 2025)

The Midsize Market Shifted Too

It's not just the flagships. The midsize jet category—your bread-and-butter transient traffic—went through its own evolution.

In 2000, popular midsize jets like the Learjet 60 and Citation X prioritized speed and efficiency over comfort:

• Cabin height: 5 ft 7 in to 5 ft 9 in (crouch-walking required)
• Cabin volume: 450-540 cubic feet
• Range: 2,400-3,100 nm

Today's midsize jets—Citation Latitude, Challenger 3500—are bigger and more comfortable:

• Cabin height: 6 ft 0 in to 6 ft 1 in (stand-up cabins)
• Cabin volume: 587-860 cubic feet (30-60% larger)
• Range: 2,700-3,400 nm

Why this matters: Midsize jets used to park tight. The Learjet 60's 64-foot wingspan meant you could fit them nose-to-tail with reasonable spacing. The Challenger 3500's 69-foot wingspan doesn't sound like much more—until you're trying to stack six of them in a 30,000 sq ft hangar and realizing you've lost a spot.

Midsize Evolution by the Numbers

The midsize category tells a similar story—comfort won over speed:

Notice what changed: the Citation Latitude has shorter range than the 1996 Citation X but outsells it because of the stand-up cabin. The Challenger 3500 nearly doubled the Learjet 60's cabin volume despite similar mission profiles.

Speed fell out of favor entirely. The Citation X cruised at Mach 0.90 (527 knots). The Latitude? Mach 0.80 (446 knots). Customers explicitly chose 80 knots slower for 6 more inches of cabin height.

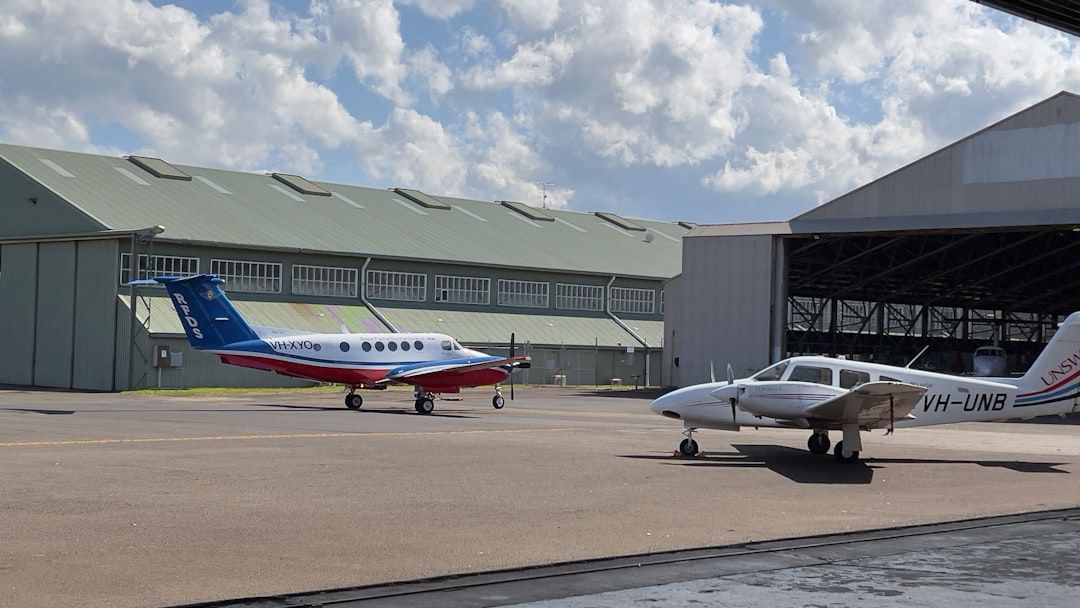

Even midsize jets grew substantially—cabin volumes increased 50-60% while wingspans expanded 5-10 feet

The Real Operational Impact

1. Hangar Door Math

If your hangar was designed in 2000 for a Gulfstream IV (77.8 ft wingspan), you had plenty of clearance. Today's ultra-long-range jets push 103-110 feet. That's not just tight—it's potentially impossible depending on your door width and wing-tip clearance requirements.

2. Stacking Density

Larger wingspans mean fewer aircraft per cycle. A hangar that comfortably held 12 mid-2000s jets might only fit 9-10 modern flagships. That's a 17-25% reduction in capacity—without changing your square footage.

3. Towing and Maneuvering

Longer fuselages and wider wingspans mean tighter turns and more careful maneuvering. Tail clearances that were comfortable in 2005 are now nail-biters. This slows down push-back operations and increases the skill level required from line crew.

4. Ramp Positioning

Parking spots designed for 95-foot aircraft don't accommodate 110-foot jets without encroaching on taxiways or adjacent spots. You're either re-striping the ramp or accepting reduced capacity.

What Changed Under the Hood

The size increase wasn't arbitrary—it was driven by three factors:

1. Range demands: Customers wanted nonstop Singapore-San Francisco, London-Los Angeles, New York-Dubai. That requires 7,500+ nm range, which means more fuel capacity, which means bigger wings and higher gross weight.

2. Cabin expectations: In 2000, a 6-foot-tall cabin was acceptable. By 2025, buyers expect stand-up showers, full bedrooms, and conference rooms. That pushed cabin volumes from 1,600 cu ft to 2,600+ cu ft.

3. Technology enabled it: Better engines (Rolls-Royce Pearl 700, Pratt & Whitney PW800) produce more thrust with similar fuel burn. Advanced materials and aerodynamics made larger airframes feasible without proportional weight penalties.

The result: jets that can fly 25% farther, carry 50% more cabin volume, and cost nearly double what their 2000-era counterparts did.

Why Bombardier Killed the Learjet

Bombardier ended Learjet production in 2021 after 59 years of manufacturing the iconic brand.

The Learjet name was synonymous with private aviation—compact, fast, and efficient. But by the 2010s, the market had fundamentally changed. Customers prioritized cabin comfort over speed, and the Learjet's defining characteristic—small, sleek, and fast—became its liability.

The numbers tell the story: The Citation Latitude—with its 6-foot stand-up cabin and 2,700 nm range—outsold the speedier but cramped Citation X despite being 80 knots slower. Customers explicitly chose comfort over performance.

Bombardier's own Challenger series outsold Learjets by a wide margin. The Challenger 350, with its 6'1" tall, 7'2" wide cabin, became the workhorse of charter fleets while Learjet orders dried up.

The final nail: by 2020, Learjet production had slowed to just 14-16 aircraft per year. The business case collapsed. Bombardier shifted focus entirely to the larger Global and Challenger families where demand remained strong.

This wasn't just Bombardier's decision—it reflected an industry-wide shift. Across all manufacturers, cabin size and comfort displaced speed as the primary selling point. The Citation X, the fastest civilian jet at Mach 0.935, was discontinued in 2018 for the same reason.

The Infrastructure Gap

Most FBO infrastructure was designed 25-40 years ago for aircraft that no longer represent the current fleet.

Many hangars were built during the 1980s-1990s business aviation boom, designed for aircraft like the Gulfstream II/III/IV (wingspan 68-93 ft). Even facilities built in the mid-2000s were sized for the GV and original Global Express era—aircraft that are now considered small by today's flagship standards.

If your hangar was built in 1995:

• It was sized for Gulfstream IIIs and IVs (77-78 ft wingspan)
• A 90-foot door was considered generous
• The largest aircraft you expected were early GVs (93.5 ft wingspan)

If your hangar was built in 2005:

• It was sized for Gulfstream IVs and Vs (78-93 ft wingspan)
• Ramp parking assumed Global Express dimensions (94 ft wingspan)
• A 100-foot door handled everything you'd see

Today's fleet:

• Flagship jets push 103-110 ft wingspan
• Cabin classes shifted upward (more super-mids, fewer light jets)
• Aircraft weights increased 15-20%

The gap between "what we built for" and "what shows up" is widening.

Assessing Your Facility for Modern Aircraft

If you're running a facility designed before 2010, here's what to audit:

Hangar Door Clearances: Measure actual opening width and compare to modern aircraft wingspans. A 100-foot door can't accommodate a 103-foot G700 with required wingtip clearance (typically 2-3 feet per side). Document which aircraft you can physically fit.

Ramp Load Ratings: Check pavement specifications. Aircraft over 100,000 lbs may exceed design limits on older ramps. Most post-2010 construction handles 115,000 lb aircraft, but 1990s-2000s infrastructure might need assessment.

Parking Geometry: Review your marked parking spots. Spots designed for 95-foot aircraft create taxiway encroachment when 110-foot jets park there. Calculate how many modern flagships you can realistically accommodate vs. what you were designed for.

Stacking Patterns: Document your typical hangar stacking density with current aircraft mix. Then model what happens if the mix shifts 20-30% toward larger aircraft (replacing GVs with G700s, for example). The wingspan difference compounds quickly.

Maneuvering Space: Assess tail swing clearances and turning radii for your tightest spots. Longer fuselages need more room to maneuver—what worked for a 96-foot GV may not work for a 110-foot Global 7500.

This isn't theoretical planning. It's understanding whether you can quote that G700 owner who just called, or whether you need to politely decline because the aircraft physically won't fit.

The Capacity Squeeze: Losing Spots Without Losing Square Footage

A 40,000 sq ft hangar in 2005 held 12 Gulfstream Vs comfortably. That same hangar today, with the same square footage, fits 9-10 G700s.

You didn't shrink your facility. The aircraft grew.

The wingspan delta—just 10 feet—compounds across every aircraft in the stack. Three G700s consume the space that four GVs once occupied. Six Challenger 3500s fill the footprint of seven Learjet 60s.

The math is brutal: a 17-25% capacity reduction without changing a single thing about your infrastructure. Your hangar door didn't get narrower. Your ramp didn't get smaller. The aircraft just got too big for the space they're trying to occupy.

The Revenue Math

What does losing 2-3 parking spots actually cost? Let's quantify it.

Scenario: Mid-size FBO, 40,000 sq ft hangar

Original capacity: 12 aircraft (designed for GV-era fleet) Current capacity with modern mix: 9-10 aircraft (~10% wingspan increase) Lost spots: 2-3 aircraft

Revenue per aircraft (typical overnight visit):

• Fuel (350 gal @ $5.50/gal margin): $1,925
• Ramp fees (handling + overnight): $300-450
• Services (GPU, lav, water, catering): $200-400
• Average total per visit: $2,400-2,800

If you're turning away 2 aircraft per week due to capacity:

• Weekly lost revenue: $4,800-5,600
• Monthly lost revenue: $20,800-24,300
• Annual lost revenue: $250,000-291,000

That's conservative math assuming midsize jets. If even one of those is a flagship burning 500 gallons (fuel margin alone: $2,750), the numbers climb significantly.

The wingspan increase from 2000 to 2025 didn't just create an operational challenge—it created a measurable revenue gap for facilities that can't adapt their capacity.

The Numbers: 25 Years of Growth

The flagship category evolved across every dimension:

The story these numbers tell: range and cabin space drove everything. Cruise speed barely changed. Cabin height stayed roughly the same. But cabin volume grew 50%+, range increased 25%, and weight went up accordingly to support it all.

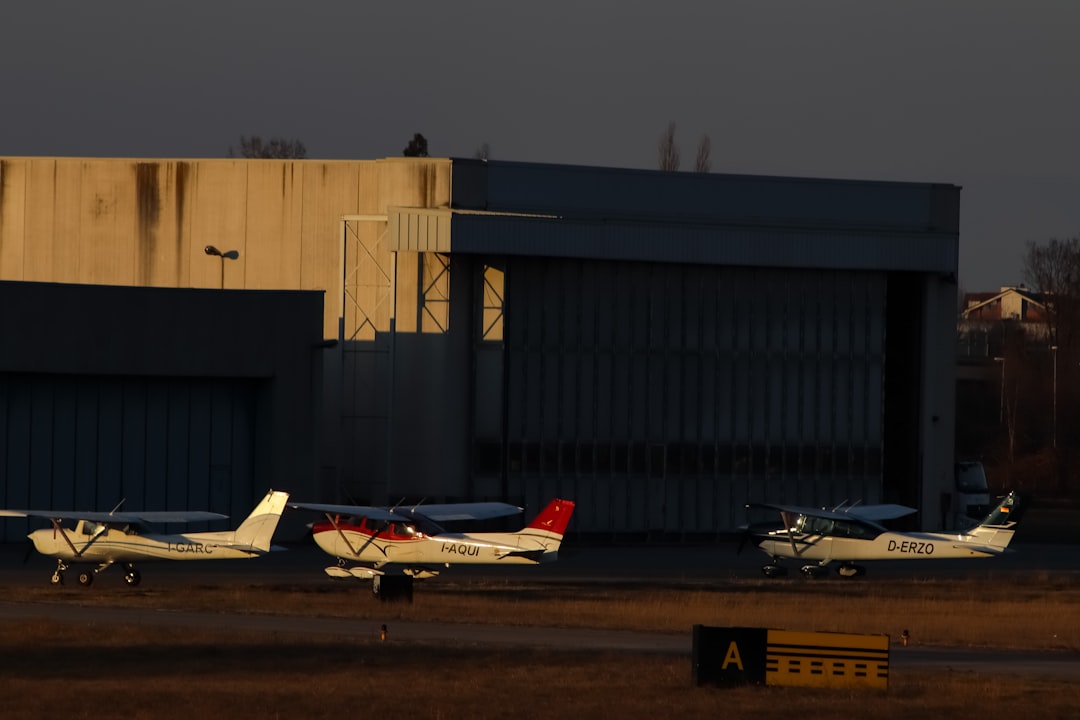

Wingspan increases of 10-15 feet reduce hangar capacity by 20-25% without changing square footage

Why the Price Tag Doubled

The size increase came with a proportional price increase—and then some. In 2000, a Gulfstream V cost around $40 million. Today's G700? $75 million list price.

That's not just inflation. What you're paying for:

Fuel capacity: The GV held 41,000 lbs of fuel. The G700 carries 49,900 lbs—an extra 1,300 gallons of Jet-A just to enable that 7,750 nm range.

Engine technology: Modern engines like the Rolls-Royce Pearl 700 produce more thrust while maintaining similar fuel consumption (~500 gph in cruise). That efficiency at scale is expensive engineering.

Materials and certification: Larger composite structures, more complex systems, and the certification process for a 115,000-lb aircraft cost substantially more than a 90,000-lb one.

Cabin complexity: Stand-up showers, full entertainment systems, conference rooms, and master suites aren't just square footage—they're weight, systems integration, and certification challenges.

The result: flagship business jets now cost nearly double what they did 25 years ago, even before accounting for inflation. And operating costs followed suit—fuel burn, maintenance, crew, insurance all scale with aircraft size.

The Bottom Line

Private jets grew up. They're 30-75% larger by cabin volume, approximately 10 feet wider in wingspan, and 15,000-25,000 lbs heavier than their 2000-era equivalents.

If your facility was designed around early 2000s aircraft, you're seeing:

• Tighter door clearances (or jets that don't fit at all)
• Reduced stacking density (fewer aircraft per cycle)
• Slower maneuvering (bigger jets = more careful positioning)
• Ramp space constraints (parking spots sized for smaller aircraft)

The infrastructure gap isn't closing. As long as owners prioritize intercontinental range and stand-up cabins, jets will keep getting larger. The next generation—whatever follows the G700 and Global 7500—will likely push 8,000+ nm range and even bigger dimensions.

Understanding how the fleet evolved isn't just aviation history. It's understanding why that Thursday afternoon call from a G700 owner might require you to measure your hangar door before you can quote them a price.

---
